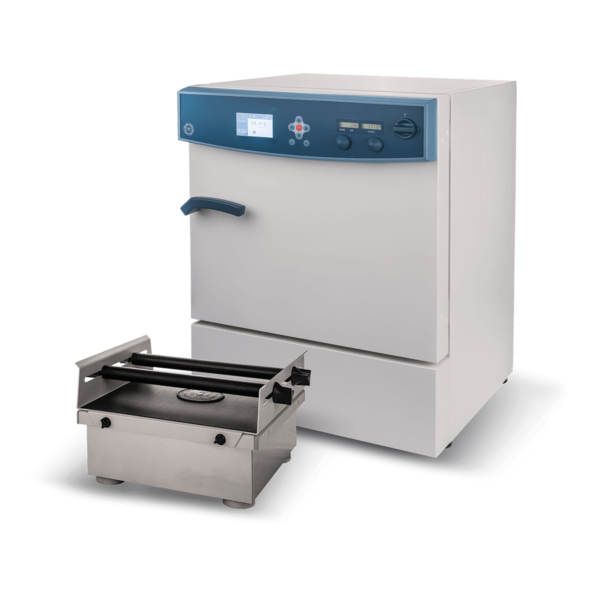

Shaking Incubator PIT053RS

Providing optimum incubation conditions with shaking possibility

Noiseless rotation system
Safety of the sensitive parts against possible pouring of the fluids being tested
Balanced while running, due to the low center of gravity
Erlenmeyer flask holder and friction sheet for sample containers

Introduction

Shaking Incubator PIT053RS provides safe and optimum incubation conditions for factors affecting growth, ideal for meeting the needs of microbiology, biotechnology, food industry, and research institutes. This Incubator has a temperature range from -5 °C to 100 ° C with a temperature fluctuation of ±0.1° C. There is an electric fan with digitally adjustable speed for exact attainment and maintenance of the desired temperature accuracy. Two important temperature technologies have been combined to achieve perfect temperature control, so that it satisfies the unique perquisites for attaining heating and cooling, highly precise temperature control, and short recovery times after opening the door. The inner glass door in these incubators ensures that the temperature remains constant when observing the Shaker and the incubation process which is important for rapid restoration of optimum growth conditions after opening the door. In addition, this incubator provides almost unlimited possibilities for adaptation to individual customer requirements based upon extensive programming options and on the week program timer and real time clock (day) of the controller.

Incubator Technical Data

Parameter	Value\Description
Temperature range without Shaker	-5 + 100 °C
Temperature range with Shaker	+4+50 °C
Capacity (withot Shaker)	53 L
Temperature fluctuation	±0.1 °C
Voltag	210 – 230 V
Frequency	50 Hz
power	650W
Weight	72 Kg

Shaker Technical Data

Parameter	Value\Description
Motion type	Orbital or linear (on request)
Motion range of tray	10mm
Max. loading capacity	3 Kg
Input / Output power	10 – 45 W
Voltage	210 – 230 VAC
Frequency	50 Hz
Max. running time	unlimited
Speed range	20-220 rpm
Speed display	Digital
Timer	0 – 99:59’ / ∞
Timer display	Digital
Function type	Time limited or unlimited time
Outer dimensions without tray	290 mm × 290 mm × 110 mm
Outer dimensions with tray	345 mm × 318 mm × 180 mm
Max. permissible relative humidity	60%
Weight	8 kg
