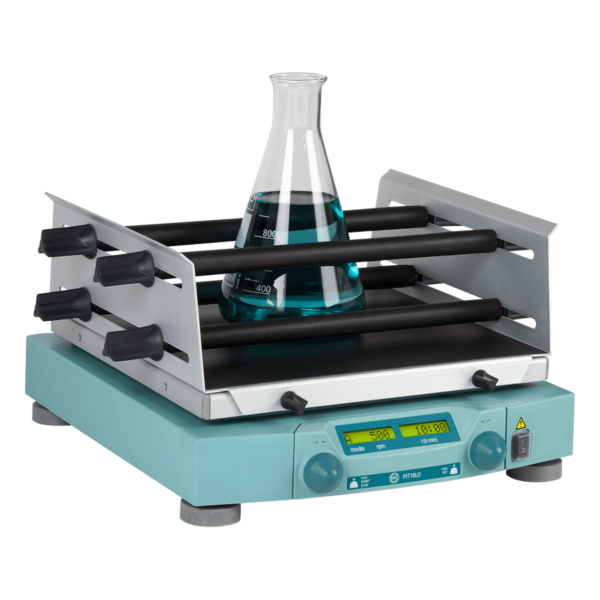

Shaker Rotator

Blending and mixing a wide range of fluids

Noiseless rotation system
Balanced while running, due to the low center of gravity
Different trays for containers with different size
Linear or Orbital rotation modes (on request)

Introduction

Shaker Rotator PIT10LO is designed for general and specialized applications. This device is a basic equipment in all medical, petroleum, food analysis, educational, and chemical laboratories. Due to appropriate technical properties such as high capacity and various accessories, this shaker makes it possible to blend and combine a wide range of liquids which meets the requirements of many related tests.

Ergonomic and beautiful design
Noiseless rotation system
Digital display
Safety of the sensitive parts against possible pouring of the fluids being tested
Balanced while running, due to the low center of gravity
Different trays for containers with different sizes
Possibility of connecting to computer
Linear or orbital rotation modes (on request)

Technical Specifications Table

Parameter	Value/description
Motion type	Orbital or linear (on request)
Motion range of tray	10mm
Max. loading capacity	7.5 Kg (speed function)
Max Input / Output power	10 – 45W
Voltage	210 – 230VAC
Frequency	50Hz
Max. running time	unlimited
Speed range	20-500 rpm
Speed display	Digital
Timer	0 – 99:59’ / ∞
Timer display	Digital
Function type	Time limited or unlimited time
Ambient permissible temperature	5 – 50°C
Max. permissible relative humidity	80%
Weight	9kg

Technical Data

Product Code	GS1 Code	Item	Outer Dimensions (mm)
PIT10LO	6265738000485	Shaker Rotator	420 × 360 × 100 (without tray)
AS 260.3	6265738000720	Petri dish tray	410 × 370 × 33
AS 260.1	6265738000744	Universal tray	425 ×334 ×135
AS 260.5	6265738000737	Separatory funnel tray	425 ×334 × 135
