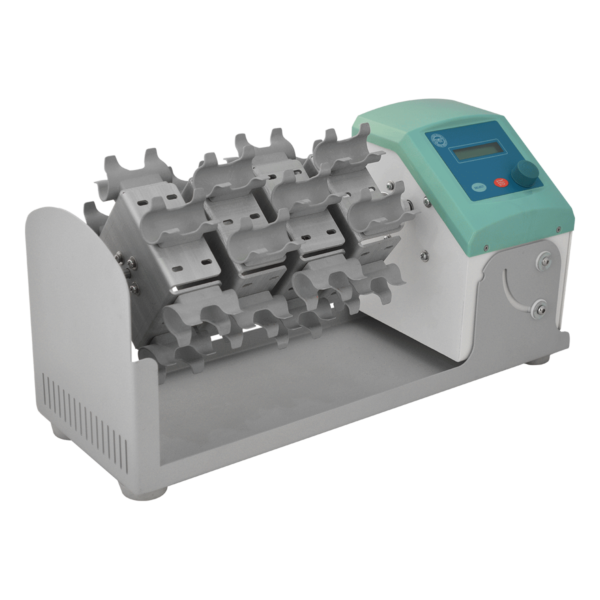

Rotamix PIT180

Mixing samples with different viscosities

• Ergonomic and beautiful design
• Noiseless rotation system
• Adjustable rotation speed and time
• Emergency stop (by pressing STOP key twice)
• LCD display safety in case of liquids and solvents spillage

Introduction

Rotamix PIT180 is one of the basic devices for all laboratories to mix liquid samples with different viscosities. The rotation speed is adjustable from 10 to 80 rpm. There are various rotisserie rotors with different clips for this tube rotator to grip test tubes from 1.5 to 50 ml. Rotamix PIT180 is ideal for general applications in medical, research, and industrial laboratories due to supporting different tubes and adjustable rotation time and speed. Rotamix PIT180 can be used in cold environments or inside incubators (5-40°C).

Ergonomic and beautiful design
Noiseless rotation system
Adjustable rotation speed and time
Emergency stop (by pressing STOP key twice)
LCD display safety in case of liquids and solvents pouring

Technical Specifications Table

Product Code	GS1 Code	Dimensions (mm)
PIT180	6265738000447	520 × 225 × 250
PIT180V16.12	6265738000768	520 × 225 × 250
PIT180V32.10	6265738000775	520 × 225 × 250
PIT180H24.28	6265738000782	520 × 225 × 250
PIT180H24.25	6265738000799	520 × 225 × 250
PIT180H24.16	6265738000805	520 × 225 × 250
PIT180H24.12	6265738000812	520 × 225 × 250
PIT180H64.10	6265738000829	520 × 225 × 250
PIT180V16.28	6265738000881	520 × 225 × 250
PIT180V16.25	6265738000898	520 × 225 × 250
PIT180V16.16	6265738000904	520 × 225 × 250

Technical Data

parameter	value/description
Rotation speed	10-80 rpm
Voltage	210-230 V
Frequency	50 Hz
Power	10 W
Display	LCD
Timer range	99 : 59’: 59”
Standard temperature	5 – 40 °C
Max. relative humidity	80%
weight	8 Kg

Rotisserie Rotors

GS1 Code	Rotor code	tubes	Clamp code	Clamp material
6265738000560	SH48	48×1.5 ml	-	Metal
6265738000577	SHM24	24×15 ml	-	Metal
6265738000584	SHL24	24×50 ml	-	Metal
6265738000591	SV32	32×1.5 ml	-	Metal
6265738000607	SVM16	16×15 ml	-	Metal
6265738000614	SVL16	16×50 ml	-	Metal
6265738000621	SH10P	64×1.5 ml	C10	Plastic
6265738000676	SV10P	32×1.5 ml	C10	Plastic
6265738000638	SH12P	24×5 ml	C12	Plastic
6265738000683	SV12P	16×5 ml	C12	Plastic
6265738000645	SH16P	24×15 ml	C16	Plastic
6265738000690	SV16P	16×15 ml	C16	Plastic
6265738000652	SH25P	24×30 ml	C25	Plastic
6265738000706	SV25P	16×30 ml	C25	Plastic
6265738000669	SH28P	24×50 ml	C28	Plastic
6265738000713	SV28P	16×50 ml	C28	Plastic
