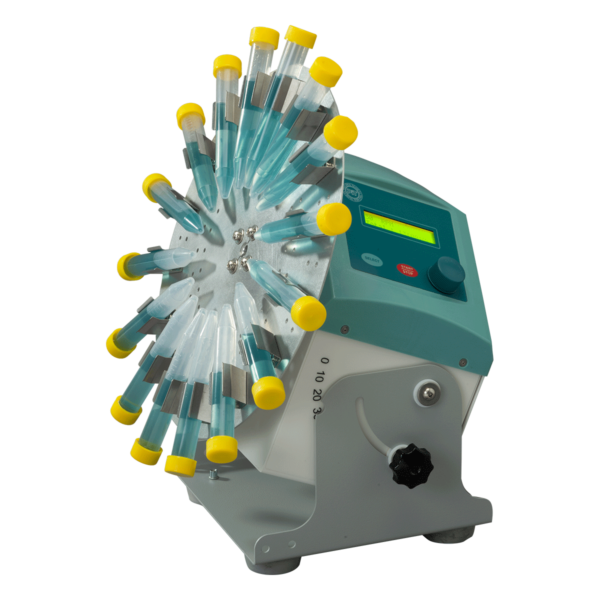

Rotamix PIT090

Mixing samples with different viscosities

Noiseless rotation system
Adjustable rotation speed and time
Emergency stop (by pressing STOP key twice)

Introduction

Rotamix PIT090 is one of the basic devices for all laboratories to mix liquid samples with different viscosities. The rotation speed is adjustable from 10 to 80 rpm and the angle of the disc rotor can also be adjusted from 0 to 90°. There are various disc rotors with different clips for this tube rotator to grip test tubes from 1.5 to 50 ml. Rotamix PIT090 is ideal for general applications in medical, research, and industrial laboratories due to supporting different tubes and adjustable rotation time and speed. Rotamix PIT090 can be used in cold environments or inside incubators (5-40°C).

Ergonomic and beautiful design
Noiseless rotation system
Adjustable rotation speed and time
Emergency stop (by pressing STOP key twice)
LCD display safety in case of liquids and solvents pouring
Various Rotors
Clips for different tubes
Adjustable rotor angle
Rotational motion

Technical Specifications Table

Product Code	GS1 Code	Dimensions (mm)
PIT090	6265738000430	225 × 188 × 250
PIT090D12.28	6265738000836	225 × 188 × 250
PIT090D12.25	6265738000843	225 × 188 × 250
PIT090D12.16	6265738000850	225 × 188 × 250
PIT090D24.12	6265738000867	225 × 188 × 250
PIT090D36.10	6265738000874	225 × 188 × 250

Technical Data

parameter	value/description
Rotation speed	10-80 rpm
Rotor angel range	0-90°
Voltage	210-230 V
Frequency	50 Hz
Max. power	10 W
Display	LCD
Timer range	99 : 59’: 59”
Permissible ambient temperature	5 – 40°C
Max. relative humidity	80%
Weight	6.5 Kg

Disc Rotors

GS1 Code	Rotor code	tubes	Clips code	Clips material
6265738000539	CR60	60×1.5 ml	-	Metal
6265738000546	CR16	16×15ml	-	Metal
6265738000553	CR8	8×50 ml	-	Metal
6265738001000	DS10P	36×1.5 ml	C10	Plastic
6265738000997	DS12P	24×5 ml	C12	Plastic
6265738000980	DS16P	12×15 ml	C16	Plastic
6265738000973	DS25P	12×30 ml	C25	Plastic
6265738000966	DS28P	12×50 ml	C28	Plastic
