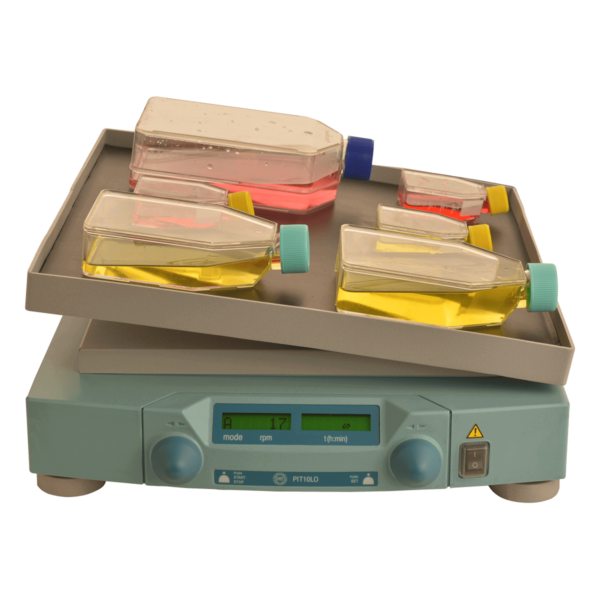

Rocker Shaker
Blending and mixing a wide range of fluids
Introduction
Rocker Shaker PIT16D is designed for general and specialized applications. This device is a basic equipment in all medical, petroleum, food analysis, educational, and chemical laboratories. Due to appropriate capacity, this shaker makes it possible to blend and combine a wide range of liquids inside different containers which meets the requirements of many related tests.
Features
- Rotation speed from 5 to 80 rpm
- Blending liquids with rocking movement
- Noiseless mechanical system
- Digital display
- Balanced while running
- Ergonomic and beautiful design
- Possibility of connecting to computer
- Safety of the sensitive parts against possible spillage of the fluids being tested
Technical Data
| Parameter | Value\Description |
|---|---|
| Motion type | Rocking |
| Motion range of tray (Rocking angle fixed) | 16° |
| Max . symmetrical loading capacity | 5.0kg |
| Max. running time | Unlimited |
| Function type | Time limited or unlimited time |
| Speed range | 5-80rpm |
| Speed display | Digital |
| Timer | 0-99:59’/∞ |
| Timer display | Digital |
| Outer dimensions | 420×360×130mm |
| Max input/ Output power | 10-45w |
| Voltage | 210-230VAC |
| Frequency | 50Hz |
| Weight | 8.8kg |
| Ambient permissible temperature | 5-50(C°) |
Technical Specifications Table
| Product Code | GS1 Code | Model | Cat. No. | Dimensions (mm) |
|---|---|---|---|---|
| PIT16D | 6265738001239 | Rocker Shaker | PIT16D | 420×360×130 |
