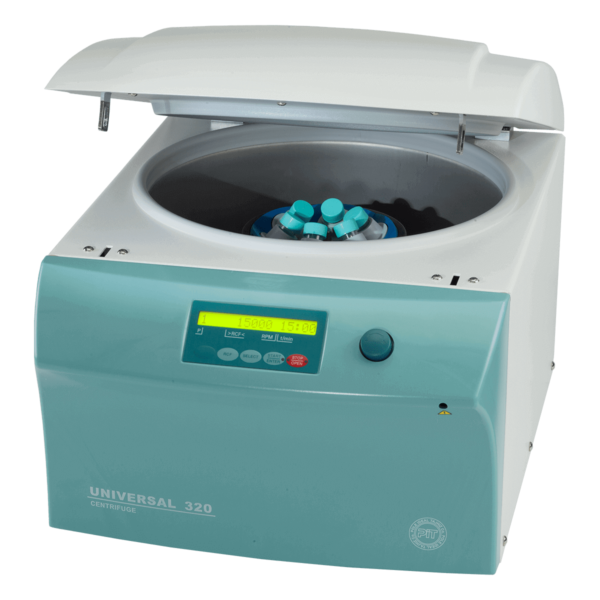

Universal Centrifuge PIT320 (Classic)
Centrifuging samples and separating substances
- 10 programmable memories
- Ability to set and use the centrifuge based on rpm (rotational speed) and RCF (relative centrifugal force)
- Adjustable centrifuging time up to 99’:59” and nonstop (unlimited time)
- Adjustable starting and brake steps (the starting and run-down time according to the adjusted speed)
- Ability to change the centrifuge parameters (rotational speed, time, etc) during operation
Introduction
Universal Centrifuge PIT320 series with high speed up to 15,000rpm in two models Classic and Cooled is ideal for meeting the major parts of the requirements of laboratories and medical and research centers. These centrifuges with a maximum relative centrifugal force of 21,382 are suitable for separating compounds with a maximum density of 1.2 Kg/dm3. The powerful brushless electromotor of these devices along with a wide range of accessories allow user to centrifuge samples in standard test tubes, microtiter plates, falcon tubes, blood collection tubes, microtubes, and to prepare slides for cytological examinations. The body and lid of this product are made from metal and the centrifuging chamber is made from stainless steel.
- 10 programmable memories
- Ability to set and use the centrifuge based on rpm (rotational speed) and RCF (relative centrifugal force)
- Adjustable centrifuging time up to 99′:59″ and nonstop (unlimited time)
- Adjustable starting and brake steps (the starting and run-down time according to the adjusted speed).
- Ability to change the centrifuge parameters (rotational speed, time, etc.) during operation
- User and equipment error detection system
- Short centrifugation system
- Displaying device lifetime
Safety
Motor-driven lid lock system with smooth, safe and noiseless performance
Hex key for opening up the lid in time of emergency
Alarm in case of overheating of the motor
Balance detector
Rotor recognition sensor
Lid balance system in order to set the lid in different angles
Technical Data
Parameter | Value\Description |
---|---|
Model | PIT320 |
Rotational Speed | 500-15000 rpm |
Temperature (fluctuation) | – |
Relative Centrifugal Force (RCF) | 21,382 |
Max. material density | 1.2 Kg/dm³ |
Max. Capacity | 4×100ml |
Voltage | 210-230 ~ V |
Electric Current | I ≤ 4 A |
Frequency | 50 Hz |
Max. Kinetic Energy | 8,600 Nm |
Max. Power | 1,000 w |
Ambient Condition | Up to 2000m above sea level. Maximum relative humidity 80% for temperatures up to 31°C, linearly decreasing to 50% relative humidity at 40°C |
Weight | 29 kg |
Technical Specifications Table
Product Code | GS1 Code | Model | Performance | Outer Dimensions (mm) |
---|---|---|---|---|
1401 | 6265738000027 | PIT320 | Classic | 520 × 395 × 346 |
