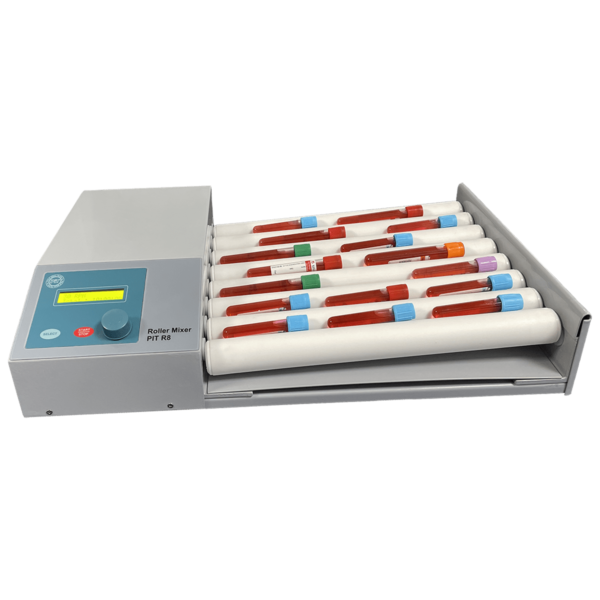

Hematology Roller Mixer PITR8

Mixing and keeping the laboratory suspensions uniform

Operating range 20 to 80 rpm
8 Rollers
Simultaneous rotational and vertical motion
Ergonomic and beautiful design
Noiseless mechanical system
Washable protective tray

Introduction

P.I.P. Hematology Mixer PITR8 has 8 rollers for mixing blood specimens, high viscosity samples, suspensions, etc. One of the functional properties of this device is its simultaneous rotational and vertical motion of the rollers. The roller dimensions and the distances between them make the instrument usable with different tubes and cylindrical bottles. A washable protective tray is designed under the rollers in order for easy cleaning in case of sample spillage. P.I.P. Roller Mixer is resistant to most of the common laboratory acids and chemicals.

Technical Specifications Table

Product Code	GS1 Code	Dimensions
PITR8	6265738001321	500 × 320 × 105

Technical Data

parameter	value/description
Voltage	210-230 V
Frequency	50 Hz
Power	15 VA
Speed range	20-80RPM
Display	digital
Timer domain	00:00':00" - 99:59':59"
Weight	9 Kg
Permissible ambient temperature	5-40 (C°)
Max. relative humidity	80 (%)
