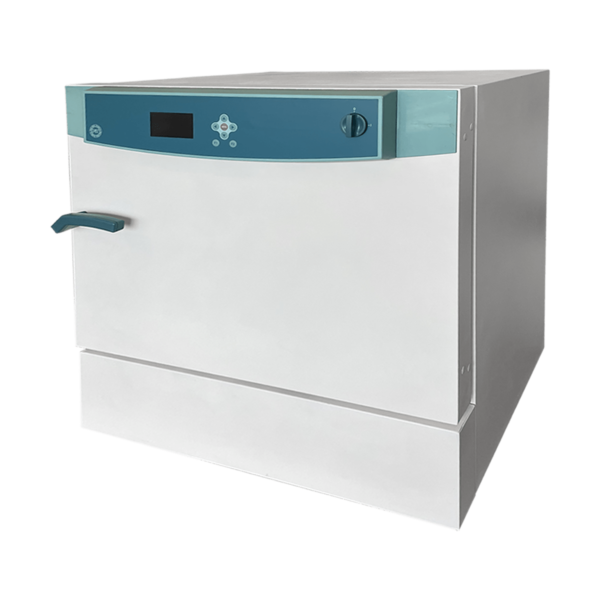

Refrigerated Incubator PIT115R

Providing optimum incubation conditions from -5°C to 100°C

  • Inner chamber made from stainless steel
  • Time-temperature graph
  • Microprocessor control for precise temperature control
  • Adjustable circulation fan speed for hemogenizing the temperature in the inner chamber
Introduction

Refrigerated Incubator PIT115R provides safe and optimum incubation conditions for factors affecting growth, ideal for meeting the needs of microbiology, biotechnology, food industry, and research institutes.

This Incubator has a temperature range from -5°C to 100°C with a temperature ­fluctuation of ±0.1°C. There is an electric fan with digitally adjustable speed for exact attainment and maintenance of the desired temperature accuracy. The inner glass door in these incubators ensures that the temperature remains constant when observing the incubation process which is important for rapid restoration of optimum growth conditions after opening the door. In addition, this incubator provides almost unlimited possibilities for adaptation to individual customer requirements based upon extensive programming options and on the week program timer and real time clock (day) of the controller.

  • Easy application with beautiful design (large LCD display)
  • Week and day programs
  • Programming with set-point ramp
  • Time-temperature graph
  • With safety controller mode to prevent the unwanted temperature increase and losing samples
  • With inner glass door to keep the temperature constant when observing the incubation process
  • Inner chamber made from stainless steel
  • Microprocessor control for precise temperature control
  • Adjustable circulation fan speed from 50% to 100% for homogenizing the temperature in the inner chamber
  • Double insulation system in order to reduce heat transfer and increase efficiency
  • Cooling system with Non-Cut mechanism
  • With 2 stainless steel racks and adjustable distance
  • Features mechanical mechanisms to maintain the balance in case of asymmetric loading
  • Possibility of connecting to printer (on request)
  • Possibility of connecting to computer (on request)
Technical Specifications Table
Product Code GS1 Code Inner Dimensions (mm) Outer Dimensions (mm)
PIT115R6265738001314400 × 600 × 460 700 × 833 × 915
Technical Data
ParameterValue/description
Voltage210-230V
Frequency50Hz
Power650W
Maximum current10A
Temperature range -5 to 100 °C
Temperature fluctuation±0.1°C
Enclosure volume115L
Percentage of fan rotation speed 30-100
Weight111Kg
Minimum number of loadable trays4
Loading capacity of each tray20Kg
Maximum loading capacity of the chamber50Kg
Environmental conditions (temperature) 10-30(C °)
Environmental conditions (humidity) 20-50(%)
Environmental conditions (pressure) Pressure equivalent to a maximum of 2,000 meters above sea level
Machine body impact capacity5(J)
Maximum device volume level65(adb)
