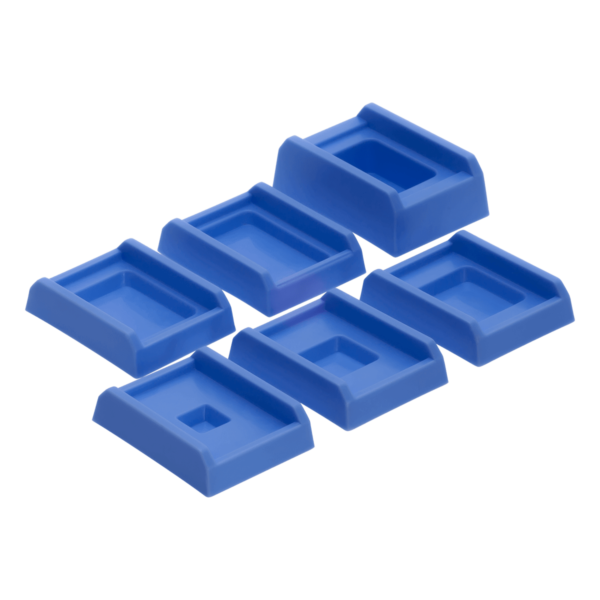

Disposable Base Mould

Click to enlarge Disposable Base Mould Paraffin embedding and preparing tissue block

6 different models
Excellent thermal exchange
Compatible with most of the tissue cassettes
Completely flat and smooth inner surface

Introduction

P.I.P. Disposable Base Mould is designed with 6 different models with excellent thermal exchange and the paraffin does not stick to it, so that the expensive and time-consuming process of cleaning metal base moulds will be no longer required. The curved edges and the completely flat and smooth inner surface allow easy block removal and paraffin ribbon continuity. Their built up sidewalls reduce risk of paraffin spillage during embedding and the standard dimensions are compatible with most of the tissue cassettes. They are spillage to be discarded after use, yet strong enough to be reused.

Technical Specifications Table

Product Code	GS1 Code	Model	Inner well dimensions (mm)	Outer dimensions (mm)
120198	6260807502013	PIP-07	7 × 7 × 6	50 × 37 × 11
120199	6260807501993	PIP-15	15 × 15 × 6	50 × 37 × 11
120200	6260807501979	PIP-24	24 × 24 × 6	50 × 37 × 11
120201	6260807502006	PIP-30	30 × 24 × 6	50 × 37 × 11
120202	6260807502020	PIP-37	37 × 24 × 6	50 × 37 × 11
120203	6260807502242	PIP-30M	30 × 20 × 12	55 × 39 × 18
