Classic Centrifuge PIT140
Centrifuging samples and separating substances
- 10 programmable memories
- Set and use the centrifuge based on rpm (rotational speed) and RCF (relative centrifugal force)
- Adjustable centrifuging time up to 99’:59” and nonstop (unlimited time)
- Adjustable starting and brake steps (the starting and run-down time according to the adjusted speed)

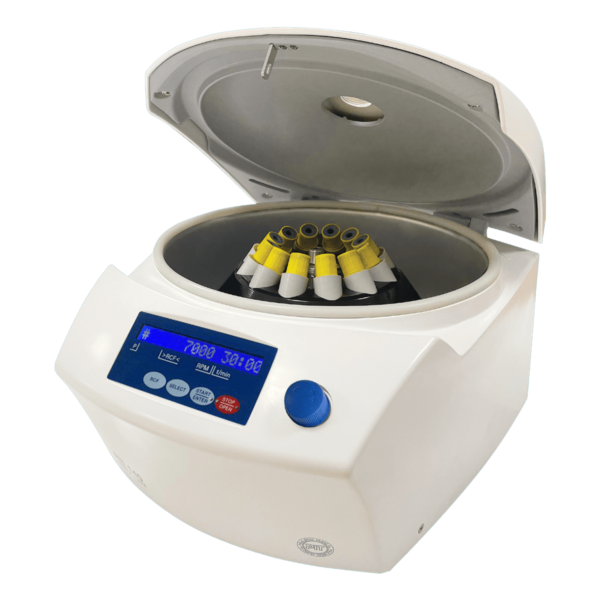

Introduction
The PIT140 Classic Centrifuge speed up to 7,000rpm is ideal for laboratories, medical and research centers. These centrifuges have a maximum relative centrifugal force (RCF) of 5,643. The powerful brushless electric motor of these devices, along with a wide range of accessories, allows the user to centrifuge the samples in standard test tubes, falcon tubes and microtubes. The body and lid of this product are made of metal and the centrifuge chamber is made of stainless steel.
- 10 programmable memories
- Set and use the centrifuge based on rpm (rotational speed) and RCF (relative centrifugal force)
- Adjustable centrifuging time up to 99′:59″ and nonstop (unlimited time)
- Adjustable starting and brake steps (the starting and run-down time according to the adjusted speed).
- changing the centrifuge parameters (rotational speed, time, etc.) during operation
- User and equipment error detection system
- Short centrifugation system
- Displaying device lifetime
Safety
Motor-driven lid lock system with smooth, safe and noiseless performance
Hex key for opening up the lid in time of emergency
Alarm in case of overheating of the motor
Balance detector
Rotor recognition sensor
Lid balance system in order to set the lid in different angles
Technical Data
Parameter | Value\Description |
---|---|
Rotational Speed | 500-7,000 rpm |
Relative Centrifugal Force (RCF) | 5,643 |
Max. material density | 1.2 Kg/dm³ |
Max. Capacity | 6×50ml |
Voltage | 210-230 ~ V |
Electric Current | I ≤ 4 A |
Frequency | 50 Hz |
Max. Kinetic Energy | 3,600 Nm |
Max. Power | 950 w |
Ambient Condition | Maximum 80% humidity in the 31°C, Linear decrease to 50% in the 40°C and the pressure of 2000 m upper than the sea surface |
Weight | 12 kg |
Technical Specifications Table
Product Code | Model | GS1 Code | Dimensions (mm) |
---|---|---|---|
3401 | PIT140 | 6265738001338 | 400 × 316× 245 |
